COMET

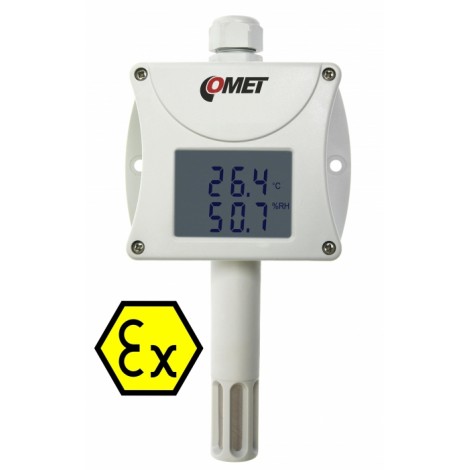

Comet T3110EX Exproof Nem ve Sıcaklık 4-20mA Transmiteri

  • T3110EX
  • VAR

ATEX certified relative humidity temperature transmitter. Outdoor, indoor use. Built-in relative humidity, temperature sensors. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy. ATEX certification for use in potentially explosive environments.

0,10

 TEMPERATURE SENSOR

Measuring range -30 to +80 °C

Accuracy ±0.4 °C

Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range 0 to 100 % RH

Accuracy ±2.5 % RH from 5 to 95 % at 23 °C

Resolution 0.1% RH

DEW POINT

Measuring range -60 to +80 °C

Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %

Resolution 0.1 °C

Certificate FTZÚ 13 ATEX 0189X

Marking EX ll 3G Ex ic llC T6 Gc

GENERAL TECHNICAL DATA

Operating temperature -30 to +60 °C

Channels internal temperature and humidity sensor

Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy

Output 4-20 mA, galvanic isolated

Range of humidity sensor temperature compensation all temperature range

Configuration of output user adjustable from PC; measured range + value

Power 9-30 Vdc

Protection class IP65 electronics; IP40 sensors

Dimensions 88,5 x 170 x 39,5 mm; stem length 75 mm

Weight approx. 150 g

Warranty 3 years
