HONEYWELL

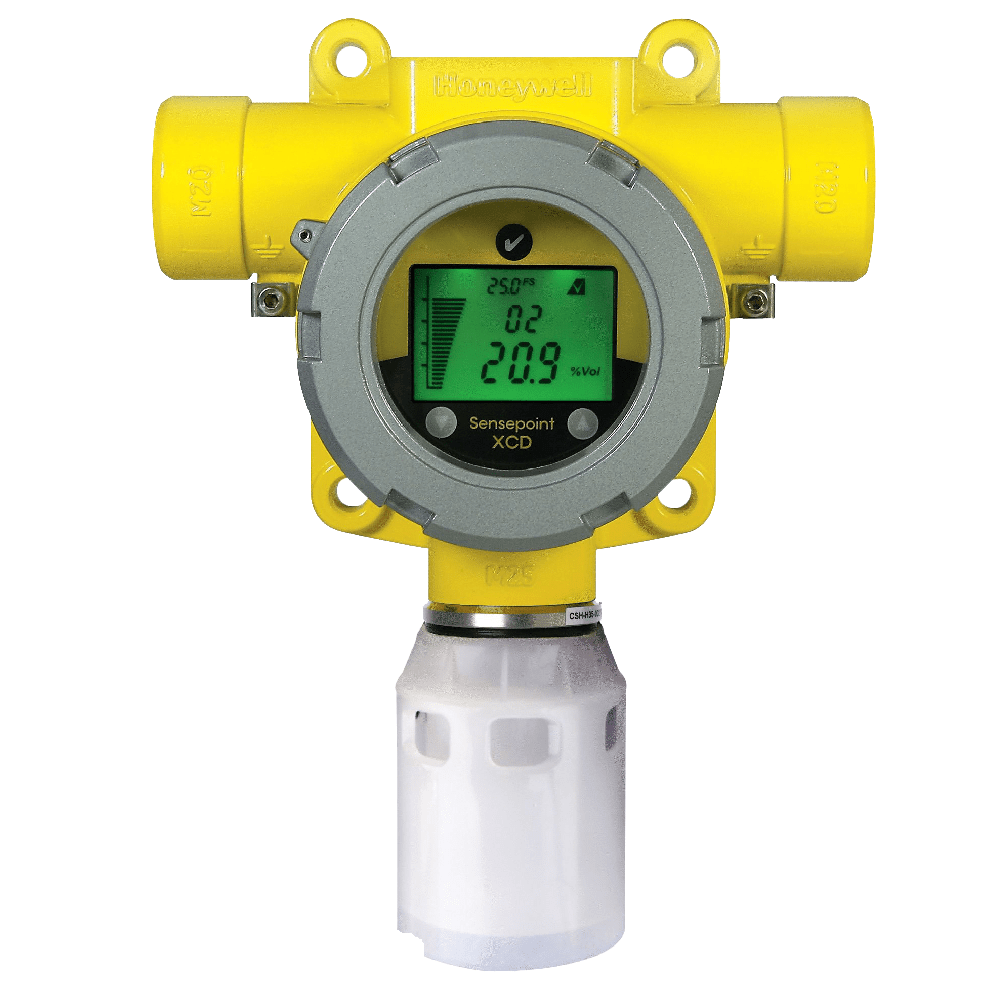

HONEYWELL SENSEPOİNT XCD SABİT GAZ DEDEKTÖRÜ

  • XCD RTD
  • VAR

0,10


Specification Detail Description
Input voltage range 12 to 32 VDC (24 VDC nominal)
Max power consumption Maximum power consumption is dependant on the type of gas sensor being used. Electrochemical cells = 3.7W, IR=3.7W and Catalytic = 4.9W. Maximum inrush current = 800mA at 24VDC
Current output relays Sink or source. 3 x 5A@250VAC. Selectable normally open or normally closed (switch) and energized/de-energized (programmable). Alarm relays default normally open/de-energized. Fault relay default normally open/energized.
Communication RS485, MODBUS RTU
Material Housing
Sensor 316 stainless steel
Weight (approx) Aluminium alloy LM25
Mounting Integral mounting plate with 4 x mounting holes suitable for M8 bolts. Optional pipe mounting kit for horizontal or vertical pipe 1.5” to 3” (2” nominal)
Cable entries UL/cUL versions
IP Rating IP66 in accordance with EN60529
Certified temperature range -40℃ ~ +65℃
Certification US, Latin America, Canada & Europe
Performance UL508; CSA 22.2 No. 52 (Flammable gases, excludes infrared sensors); ATEX, IEC/EN60079-29-1
